34 Dickson Charge Pump
34 : Dickson Charge Pump
- Author: Uri Shaked
- Description: A 3-stage Dickson charge pump
- GitHub repository
- Open in 3D viewer
- Clock: 2000000 Hz
How it works
A 3-stage dickson charge pump.
How to test
Apply a clock signal of 2 MHz to the clk input. You should see the output voltage on the ua[0] (vout) pin rise to ~3.2 V.

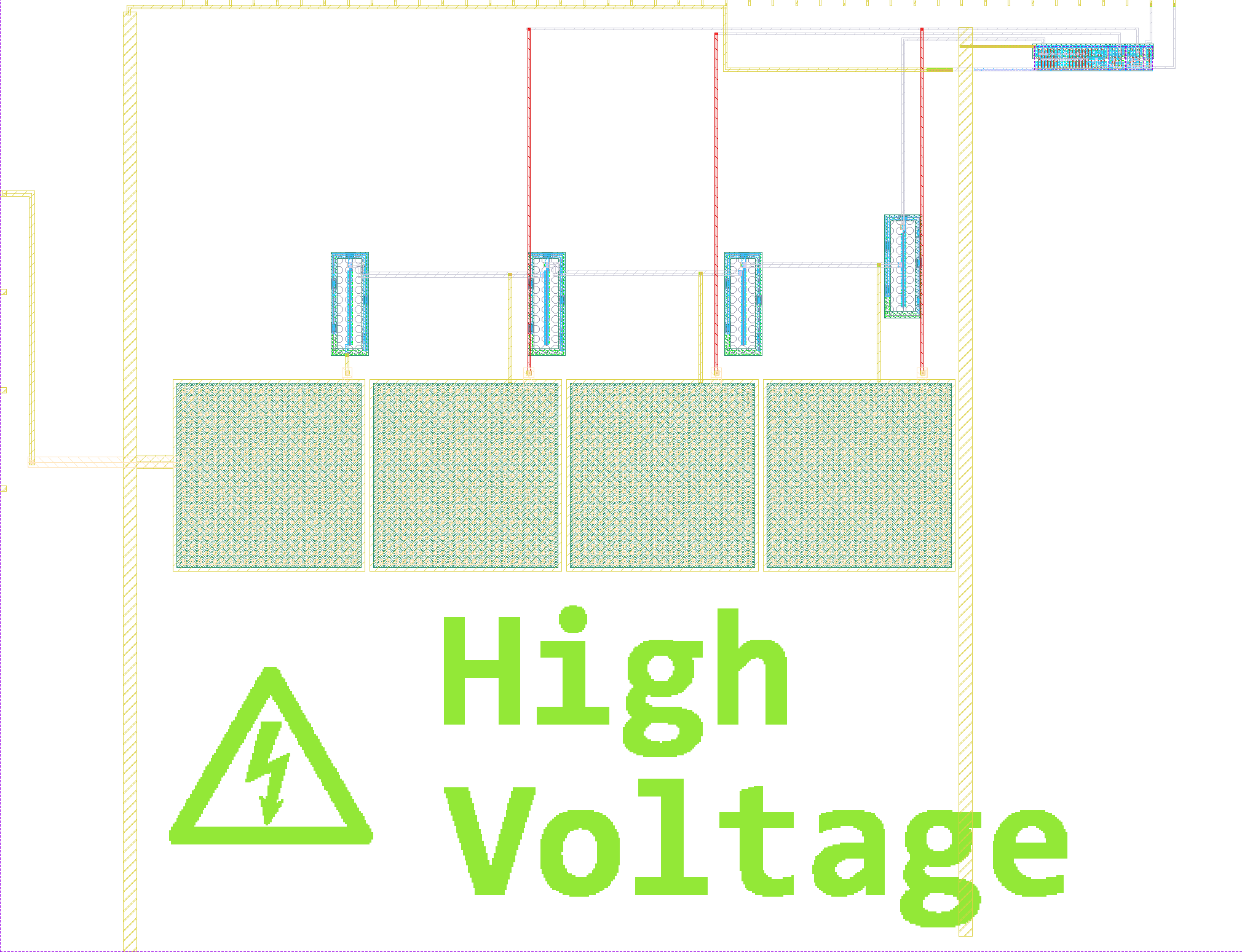

Layout

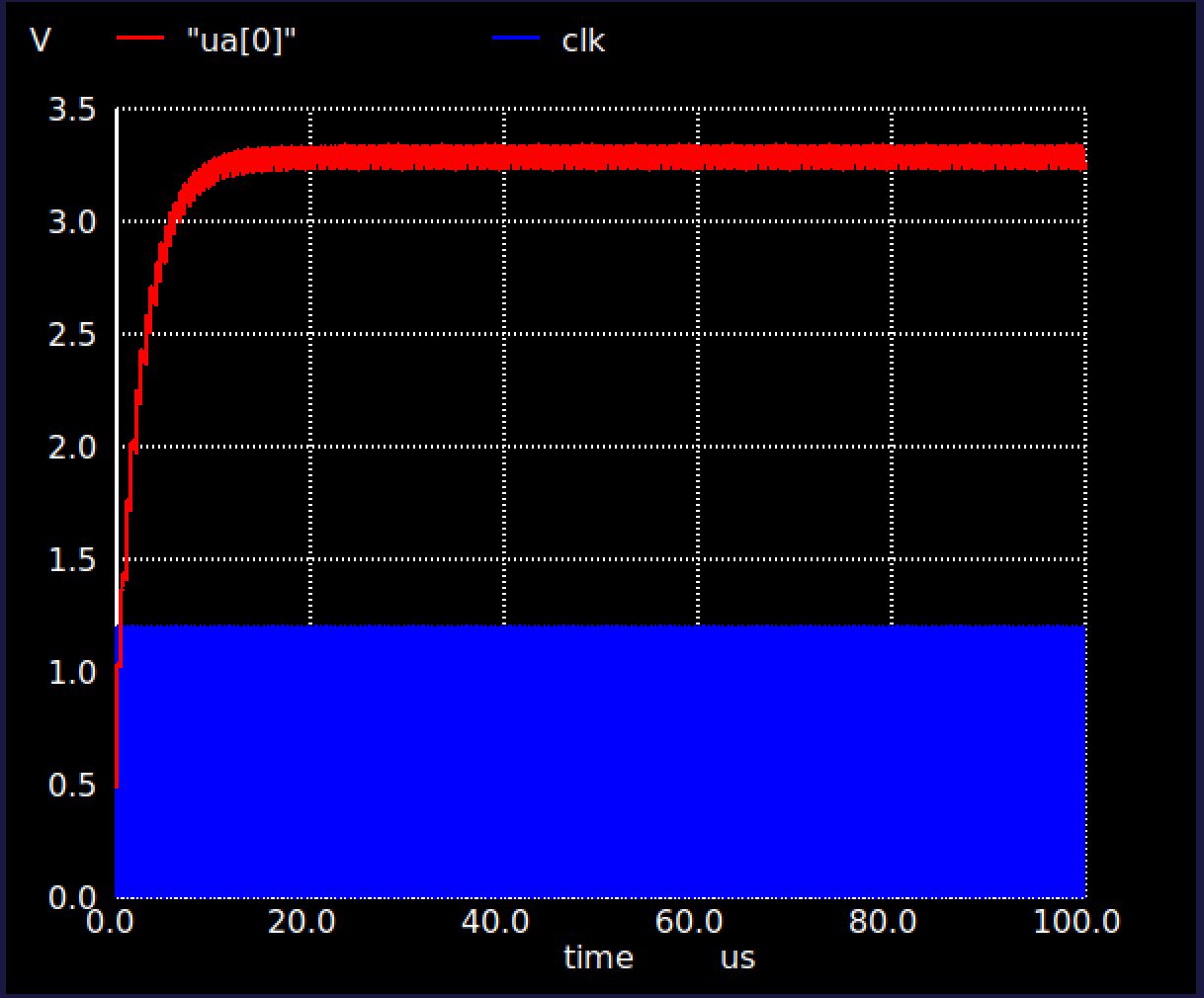

Post layout simulation results
Tested with 2 MHz input clock and 7 Mega Ohm load.
