Simon Says Game

How it works

Simon says is a simple electronic memory game: the user has to repeat a growing sequence of colors. The sequence is displayed by lighting up the LEDs. Each color also has a corresponding tone.

In each turn, the game will play the sequence, and then wait for the user to repeat the sequence by pressing the buttons according to the color sequence. If the user repeated the sequence correctly, the game will play a "leveling-up" sound, add a new color at the end of the sequence, and move to the next turn.

The game continues until the user has made a mistake. Then a game over sound is played, and the game restarts.

Check out the online simulation at https://wokwi.com/projects/408757730664700929 (including wiring diagram).

Clock settings

The clk_sel input selects the clock source:

0: external 50 KHz clock, provided through the clk input.
1: internal clock, generated by the ring_osc module, with unknown frequency.

The internal clock is generated by a 9-stage ring oscillator, divided by 8192, to get a frequency of about 50.7 KHz (as measured in simulation).

When using the internal clock, its signal is also output on the uo_out[7] pin for debugging purposes.

How to test

Use a Simon Says Pmod to test the game.

Provide a 50 KHz clock input, reset the game, and enjoy!

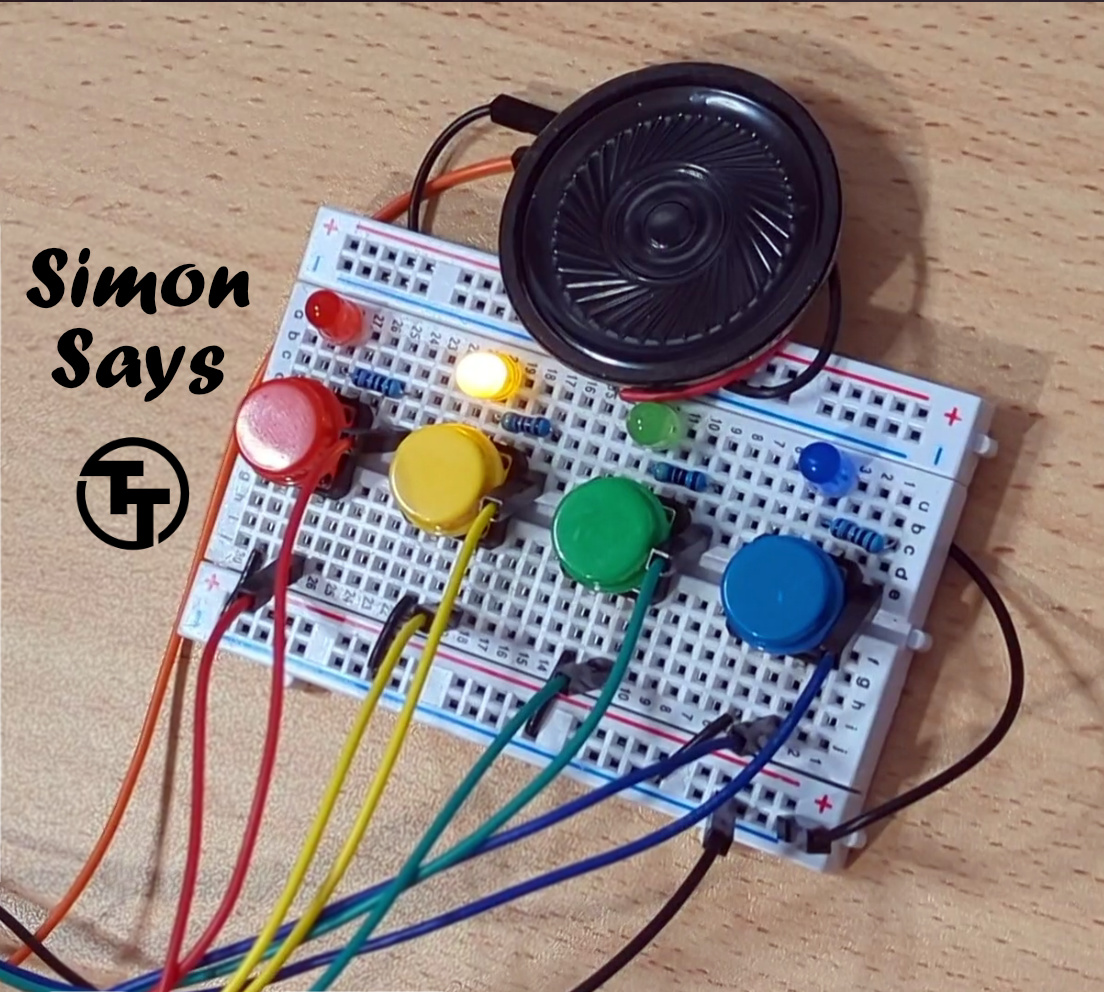

If you don't have the Pmod, you can still connect the hardware manually as follows:

Connect the four push buttons to pins btn1, btn2, btn3, and btn4. Also connect each button to a pull down resistor.
Connect the LEDs to pins led1, led2, led3, and led4, matching the colors of the buttons (so led1 and btn1 have the same color, etc.). Don't forget current-limiting resistors!
Connect the speaker to the speaker pin (optional).
Connect the seven segment display as follows: seg_a through sev_g to individual segments, dig1 to the common pin of the tens digit, dig2 to the common pin of the ones digit. Set seginv according to the type of 7 segment display you have: high for common anode, low for common cathode.
Reset the game, and then press any button to start it. Enjoy!

External Hardware

Simon Says Pmod or four push buttons (with pull-down resistors), four LEDs, and optionally a speaker/buzzer and two digit 7-segment display.
