235 Voltage Controlled LC-Oscillator
235 : Voltage Controlled LC-Oscillator
- Author: Noritsuna Imamura
- Description: Voltage Controlled LC-Oscillator of 2GHz for Skywater130nm
- GitHub repository
- Open in 3D viewer
- Clock: 0 Hz
Voltage Controlled LC-Oscillator
This project is "Voltage Controlled LC-Oscillator of 2GHz for Skywater130nm".

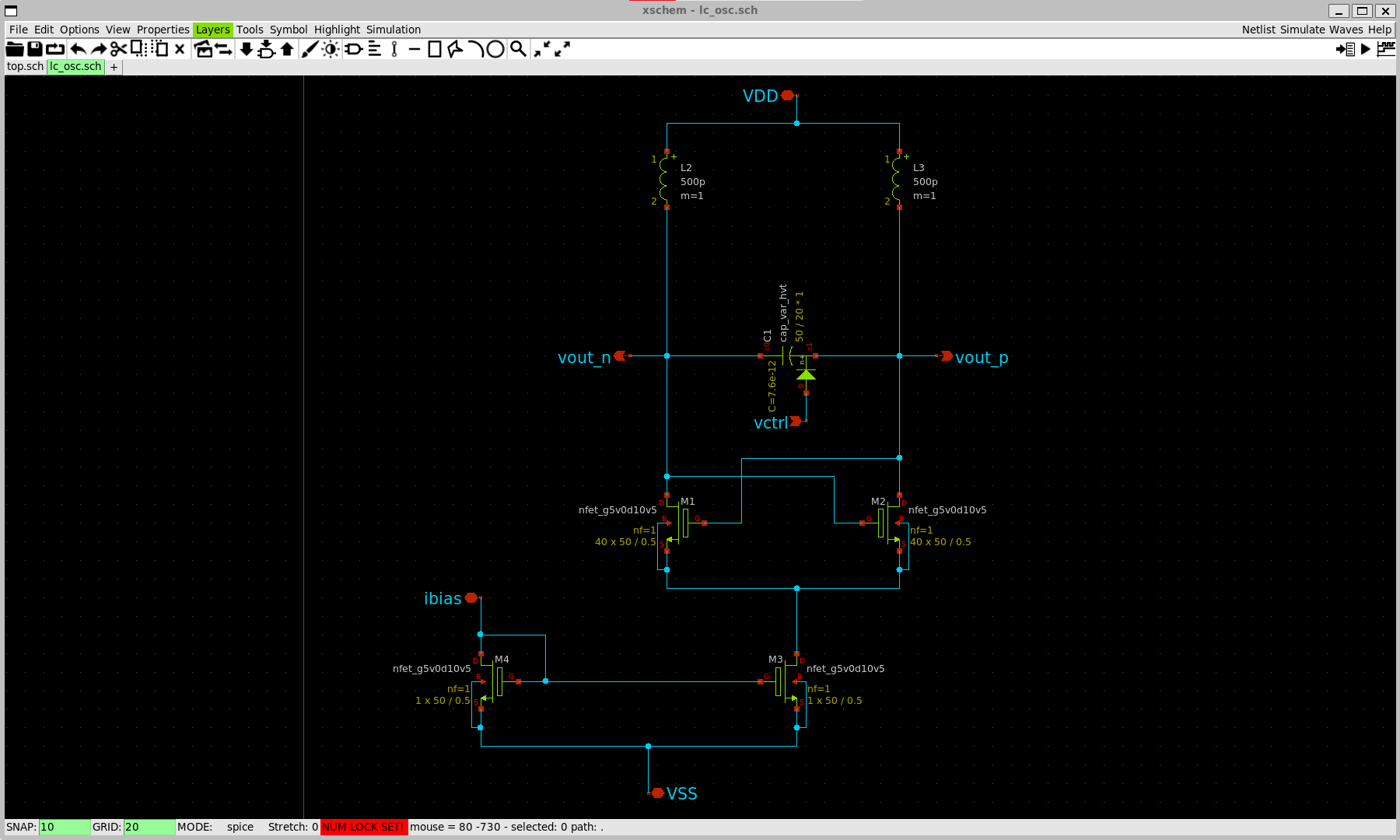

Circuit

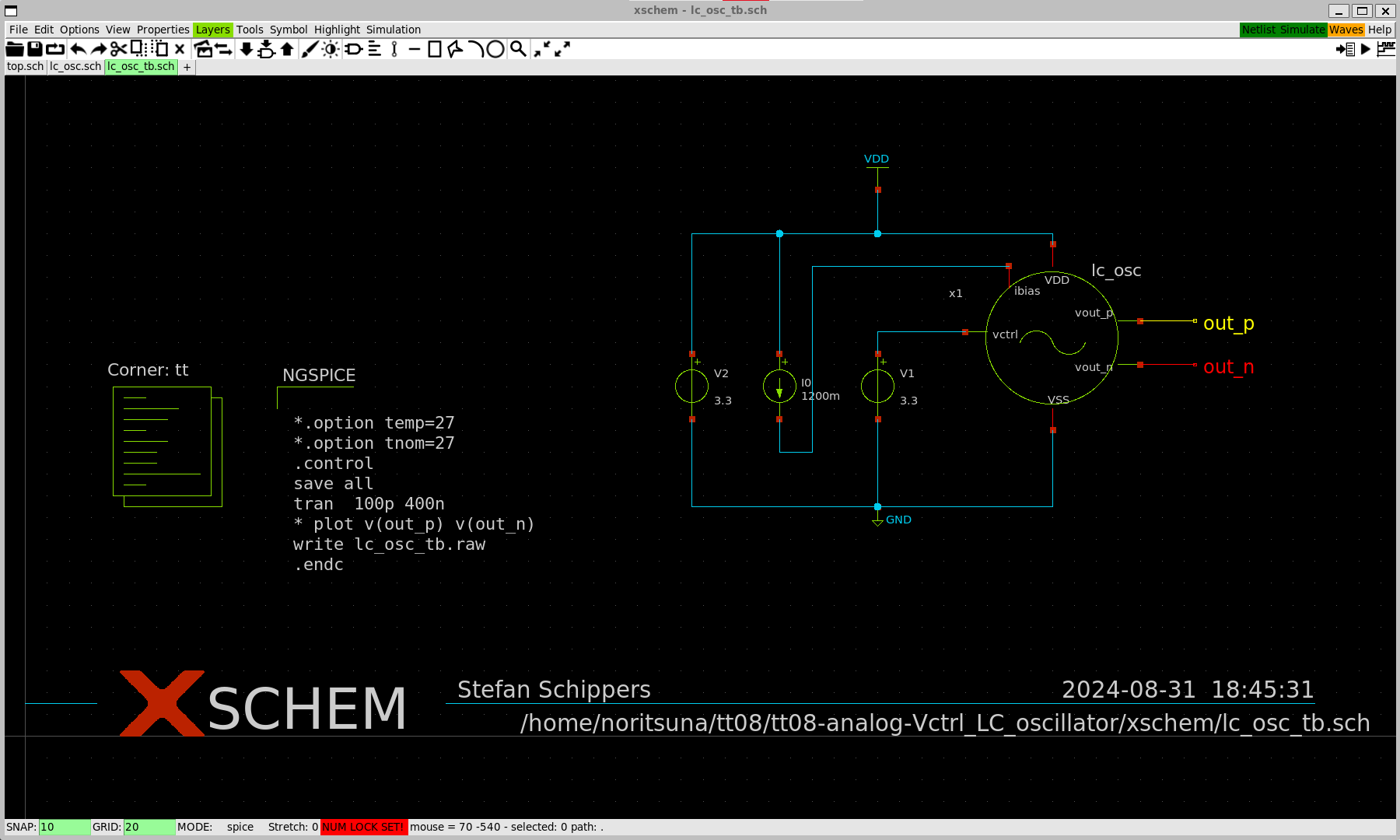

Test Bench

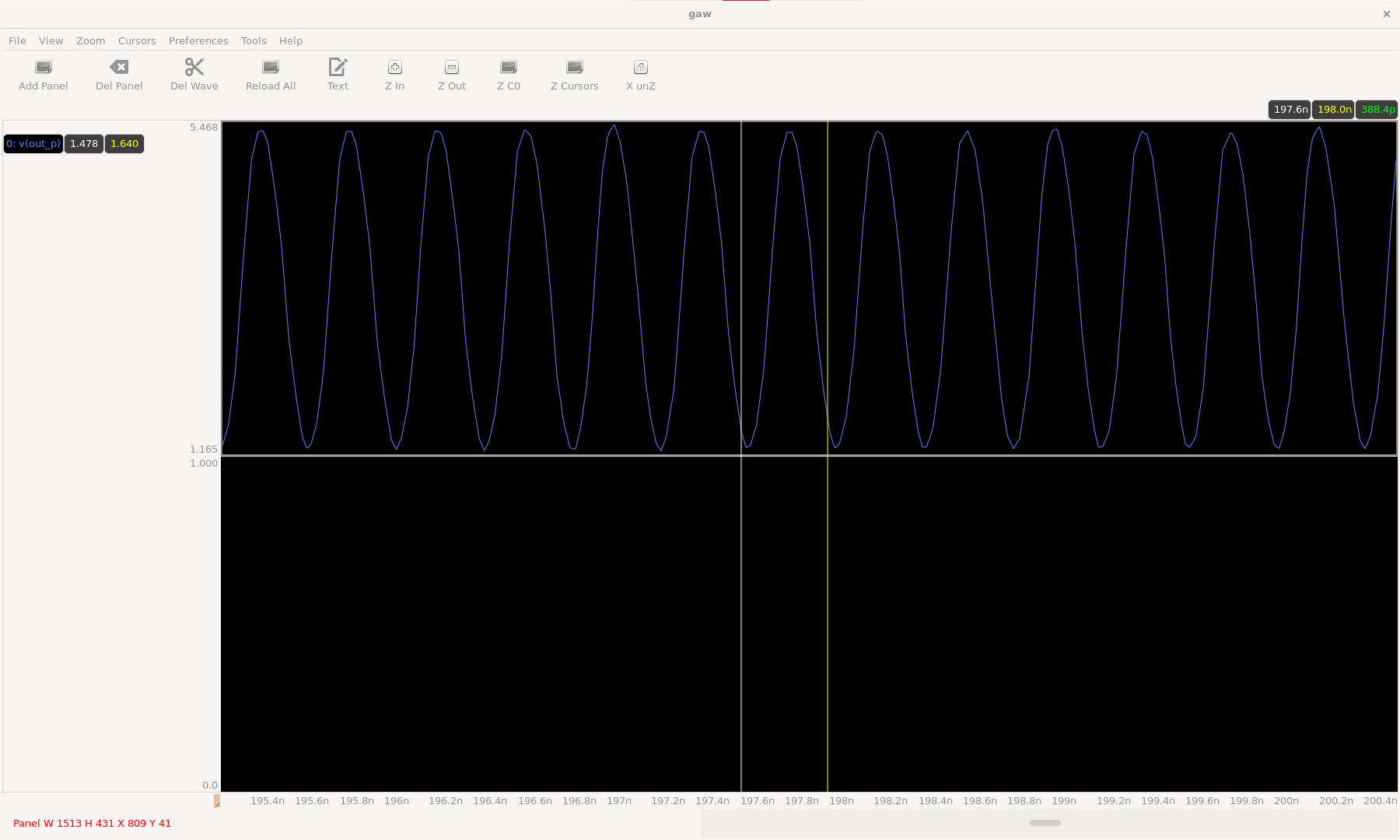

Result
- 388pSec = 2.6GHz

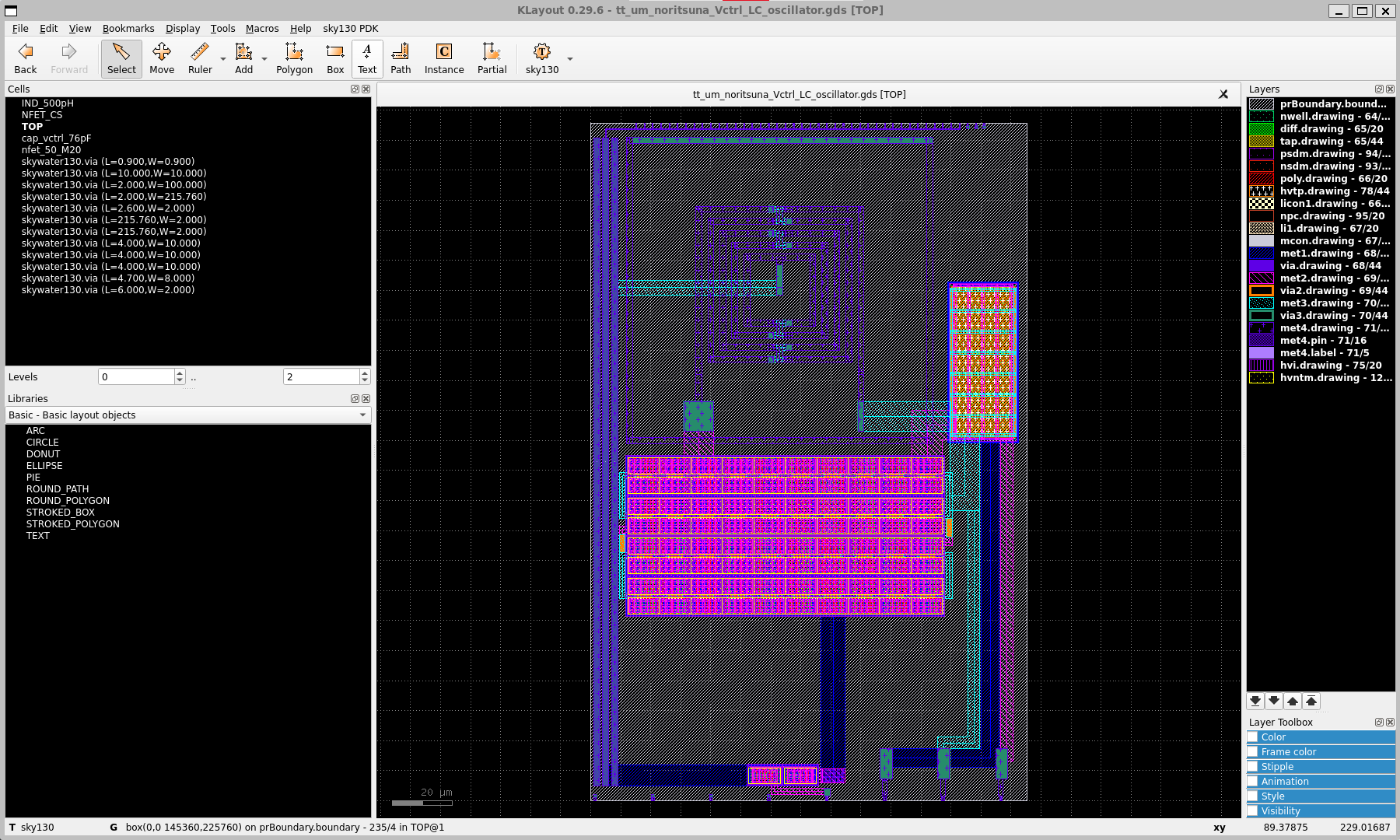

Layout
Tapeout
This project made by Tiny Tapeout.
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | |||
| 1 | |||
| 2 | |||
| 3 | |||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 |
Analog pins
ua | PCB Pin | Internal index | Description |
|---|---|---|---|
| 0 | A4 | 4 | vout_p |
| 1 | A1 | 1 | vout_n |
| 2 | A3 | 3 | vctrl |
| 3 | A2 | 2 | ibias |
