229 5MHz Ring Oscillator
229 : 5MHz Ring Oscillator
- Author: Alex Jaeger
- Description: A _very_ simple 5MHz ring oscillator
- GitHub repository

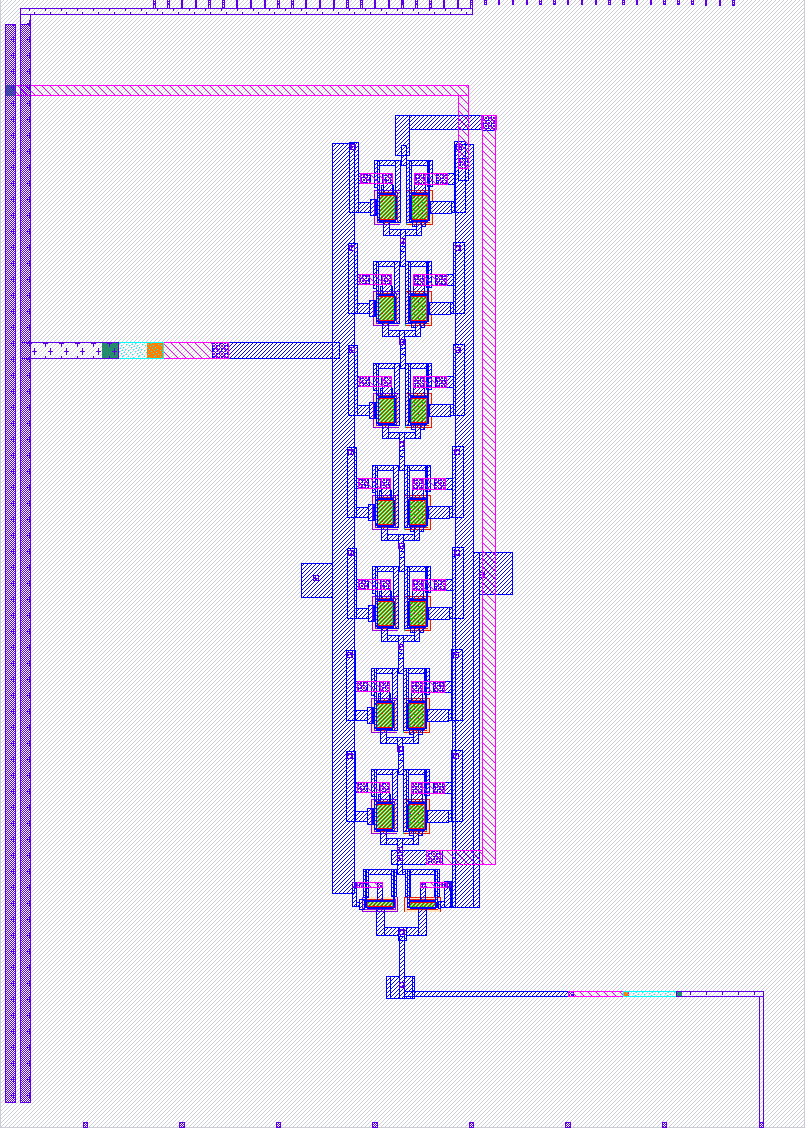

- Open in 3D viewer
- Clock: 0 Hz
How it works
This is a single-pin analog design project. The design presents a 5MHz clock signal at the output pin ua[0].
How to test
The design will be automatically enabled when selected on the evaluation board.
External hardware
No extra hardware required.
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | |||
| 1 | |||
| 2 | |||
| 3 | |||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 |
Analog pins
ua | PCB Pin | Internal index | Description |
|---|---|---|---|
| 0 | A1 | 1 | Oscillator Output |
